Also see Capacitor Test Kit for Tattoo Machines-- Invention by Wes Wood

We recommend NON-POLARIZED Capacitors

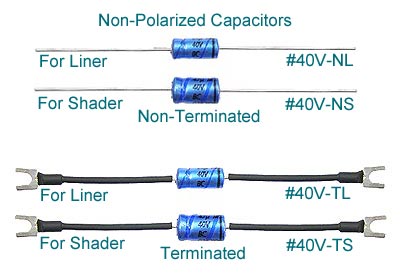

Bi-Polar Non-Polarized CAPACITORS

NON-TERMINATED
Non-terminated
Capacitors require soldering.
$ 2.50 Each with plain leads.
SOLDERING REQUIRED.
Non-terminated (no forked leads)
Non-Terminated for Liners. #40V-NL
Non-Terminated for Shaders. #40V-NS

SOLDERLESS
TERMINATED CAPACITORS

NO SOLDERING REQUIRED Ready to install.
$ 5.00 Each with forked leads.
Terminated for Liners. #40V-TL
Terminated for Shaders. #40V-TS
Many other Polarized style Capacitors
are available.



Loose UN-terminated ($ 2.50) will be sent unless you order
 "SOLDERLESS TERMINATED CAPACITORS" ($ 5.00)
Pictures below show "Un-terminated" Capacitors without ends.
Warning: read Note about Capacitor failure

THESE ARE POLARIZED          Terminated           Non-Terminated
# 16V-100MF-Green   # 16VX-100MF-Green
# 16V-47MF-Green   # 16VX-47MF-Green
# 16V-22MF-Green   # 16VX-22MF-Green
# 16V-10MF-Green   # 16VX-10MF-Green
# 25V-100MF-Green   # 25VX-100MF-Green
# 25V-47MF-Green   # 25VX-47MF-Green
# 25V-22MF-Green   # 25VX-22MF-Green
# 25V-10MF-Green   # 25VX-10MF-Green
# 35V-47MF-Orange   # 35VX-47MF-Orange
# 35V-47MF-Blue   # 35VX-47MF-Blue
# 35V-33MF-Blue   # 35VX-33MF-Blue
# 35V-10MF-Blue   # 35VX-10MF-Blue
# 35V-22MF-Orange

# 35VX-22MF-Orange

# 25V-50MF-Black   # 25VX-50MF-Black
# 25V-25MF-Black   # 25VX-25MF-Black
# 25V-47MF-Orange   # 25VX-47MF-Orange

The general rule of thumb in selecting the voltage value is
twice the maximum voltage used.

Warning: read Note about Capacitor failure
