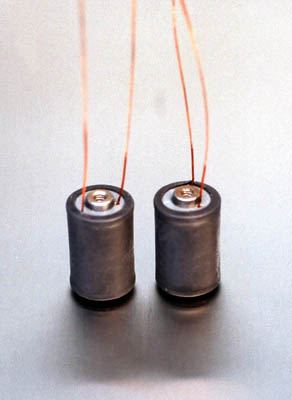

Tattoo Machine PartsCoil Sets   Plain Coil Sets

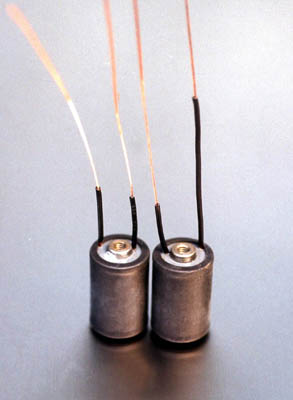

 Tips on soldering,

Black Shrink Wrap

Black Shrink Wrap
and Wire Covering
Front Coil:
The wire next to the edge
you will attach to the front standoff solder lug.

The two middle wires next to the core
you will twist together and soldered together.

Rear Coil:
The wire next to the edge
you will attach to the rear standoff solder lug.


Electromagnetic Coils for Tattoo Machines Sets 8 Wrap Coils, 10 Wrap Coils, 12 Wrap Coils
