Instructions how to open and close a chuck for APOLLOs.

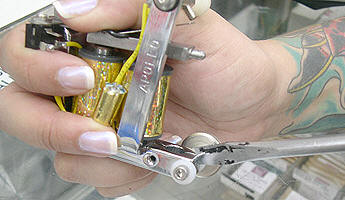

Never use a tool to pry open a chuck.
This is considered abuse.
Chucks damaged like this will not be replaced.

The Rear hole is designed
to function to squeeze or close the over-all
size of the chuck opening to fit undersize tubes,
tubes less than 5/16 Inch (Industry Standard).

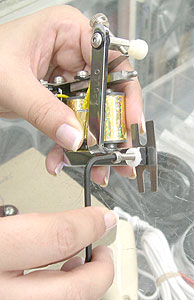

From the right side insert a screw and protective
washer and squeeze the chuck together enough
to be able to hold an undersize tube.
The aircraft aluminum is designed to be flexible
enough to stretch enough to accommodate
oversize and undersized tubes.

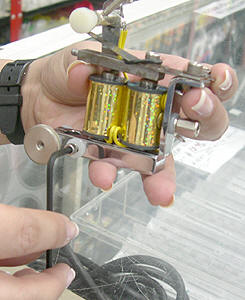

If a tube does not fit, Thread out the front screw and
insert a spring in the slot.

Screw the screw in to push the other side open until the
tube will fit.  Don't over open.

Test the fit a little at a time as you go.

Damaged chucks will not be replaced.
