#A136 Armature bar sticks to coils.

Short Circuit Troubleshooting Answer # A136
Problem Armature bar sticks to coil when the
foot pedal is pressed.
Because The electrical circuit is shorted out.

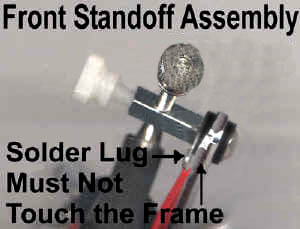

Check Solder lug must not touch the frame.
Why Electricity will flow through any circuit
that is connected.
Cause If the rear-standoff touches the frame a
new path for electricity is created.
Remedy Install plastic recessed washer.

Also see  needle insertion in tube.
