Tattoo Machine Troubleshooting
#A137 Armature bar sticks to coils.

Short Circuit Troubleshooting Answer # A137
Problem Armature bar sticks to coil when the
foot pedal is pressed.
Because The electrical circuit is shorted out. Missing
or not insulating washer.

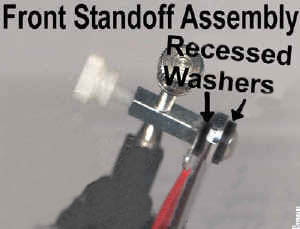

Check The plastic recessed washers insulate the
front stand-off from the frame. If a metal
washer is used or the washer is missing
the machine will short.
Why Electricity will flow through any path
that is created.
Cause If the front stand-off touches the frame a
new path for electricity is created.
Remedy Install plastic or fiber recessed washer
which will insulate front stand-off.

Also see  needle insertion in tube.
