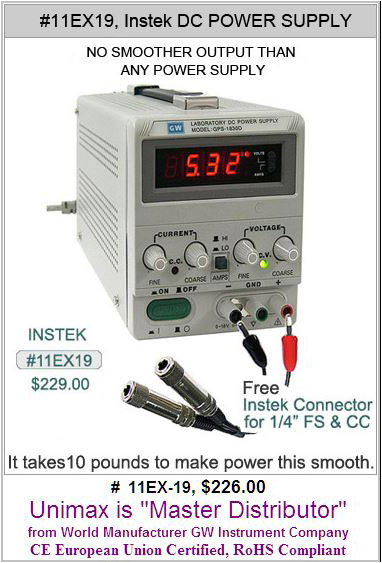

  11EX19, Instek Power Supply     You cannot buy a "Better" Power Supply.

Unimax "Master Distributor" for Instek
from World Manufacturer GW Instrument Company
CE European Union Certified, RoHS Compliant





#  11EX-19, $226.00
100V/120V and 220V/240V Switch selectable.
Meets International Standards


Order separately:
"Combo" Foot Switch - Clip Cord
$ 45.00 # 11EX-325


#4BE169T, 2 Amp 250V Fuse $ 2.00

ISO-9001
CERTIFIED MANUFACTURER
USA Repair Facility
Warranted.

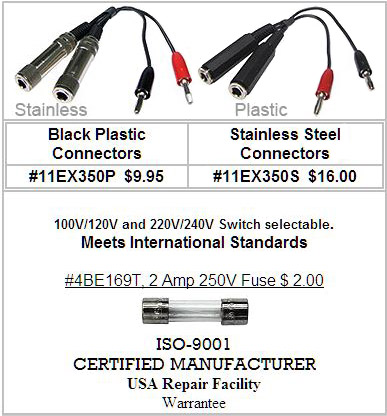

Connectors

Combo FS/CC

#11EX325 CC & Treadlite

$45.00




Stainless Steel Connectors

#11EX350S

$16.00



Black Plastic Connectors
#11EX350P
$9.95

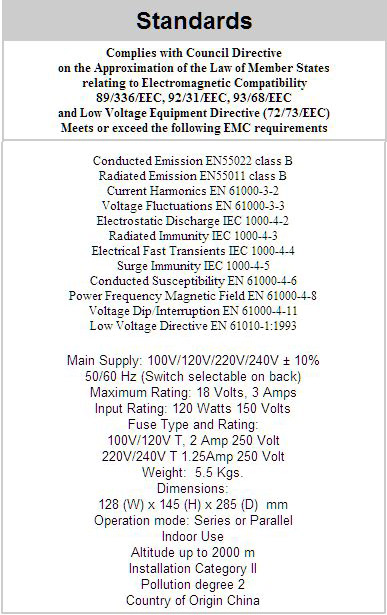

Meets International Standards

Complies with Council Directive
on the Approximation of the Law of Member States
relating to Electromagnetic Compatibility
89/336/EEC, 92/31/EEC, 93/68/EEC
and Low Voltage Equipment Directive (72/73/EEC)
Meets or exceed the following EMC requirements

Meets or exceed the following EMC requirements
Conducted Emission EN55022 class B
Radiated Emission EN55011 class B
Current Harmonics EN 61000-3-2
Voltage Fluctuations EN 61000-3-3
Electrostatic Discharge IEC 1000-4-2
Radiated Immunity IEC 1000-4-3
Electrical Fast Transients IEC 1000-4-4
Surge Immunity IEC 1000-4-5
Conducted Susceptibility EN 61000-4-6
Power Frequency Magnetic Field EN 61000-4-8
Voltage Dip/Interruption EN 61000-4-11
Low Voltage Directive EN 61010-1:1993

Set-Up Instructions

Main Supply: 100V/120V/220V/240V 10%
50/60 Hz (Switch selectable on back)
Maximum Rating: 18 Volts, 3 Amps
Input Rating: 120 Watts 150 Volts
Fuse Type and Rating:
100V/120V T, 2 Amp 250 Volt
220V/240V T 1.25Amp 250 Volt
Weight:  5.5 Kgs.
Dimensions:
128 (W) x 145 (H) x 285 (D)  mm
Operation mode: Series or Parallel
Indoor Use
Altitude up to 2000 m
Installation Category II
Pollution degree 2
Country of Origin China
  • Fact: The load on the needle changes as it goes from above the skin (when you step on the foot switch) to penetrating as you enter the skin and as you move around. You can hear the difference.

  • Instek responds faster adjusting the current keeping the speed more constant under different pressures.

  • Instek has the lowest fluctuation -- check the figures below.
    Others don't publish their figures - they want to hide them!
    When someone says they design and make a power supply,
    you can bet there is no verifiable standards.
     ISO-9001 Certified Manufacturer of Electronic Equipment.

    Gone are the days of garage and back room manufacture.

  • It takes sophisticated facilities and sophisticated circuitry to produce
    high-end power supplies that are certified to work both in the USA
    and are awarded European Union Certified with Authentic Labels as
    well as RoHS Compliant Standards.
It takes sophisticated circuitry

not a "minimum of wires "

to make a great power supply.
(That's why it weighs 10 lbs.)

If you take the cover off and
only see 3 or 4 things in your chassis,
you cannot expect high performance.


"Performance"

only from
INSTEK

Set-Up Instructions

Authentic Instek Power Supply.
Known World Wide.  "Bragging Rights"
The most sophisticated power supply money can buy.

Far exceeds anything available in the Tattoo World.

Auxiliary rectifier and FULL WAVE BRIDGE Main RECTIFIER
High quality serial control type regulated DC power sources.
Fully metered, Volt and Amp.

Voltage Regulation
Line regulation: ≤0.01%+3mV
Load regulation: ≤0.01%+3mV(rating current≤3A)
Load regulation: ≤0.01%+5mV(rating current≤3A)
Recovery Time ≤100s (50% Load change, minimum load 0.5A)
Ripple&Noise ≤0.5mVrms (5Hz~1MHz) (rating current≤3A)
Ripple&Noise ≤1.0mVrms (5Hz~1MHz) (rating current<3A)
Current line regulation: ≤0.2%+3mA
Current load regulation: ≤0.2%+3mA
Current Ripple & Noise: ≤3mArms.

Made in China


Bottom: Serial Number, CE Mark

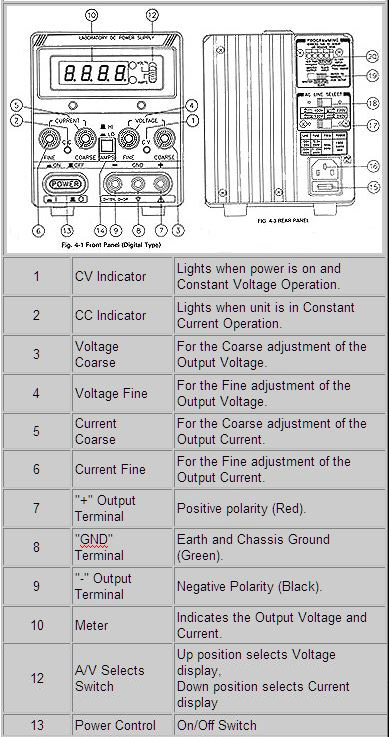

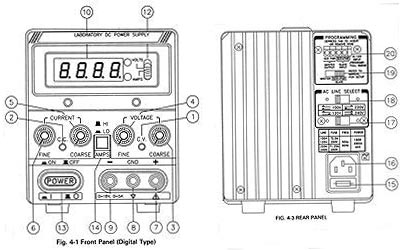

Back

1 CV Indicator Lights when power is on and Constant Voltage Operation.
2 CC Indicator Lights when unit is in Constant Current Operation.
3 Voltage Coarse For the Coarse adjustment of the Output Voltage.
4 Voltage Fine For the Fine adjustment of the Output Voltage.
5 Current Coarse For the Coarse adjustment of the Output Current.
6 Current Fine For the Fine adjustment of the Output Current.
7 "+" Output Terminal Positive polarity (Red).
8 "GND" Terminal Earth and Chassis Ground (Green).
9 "-" Output Terminal Negative Polarity (Black).
10 Meter Indicates the Output Voltage and Current.
12 A/V Selects Switch Up position selects Voltage display,
Down position selects Current display
13 Power Control On/Off Switch
14 Current HI/LO Control Displays HI/LO current range on readout.
15 Fuse Holder Draw pulls out to expose fuse and holds a spare.
16 Power Cord Power Cord connection. UK should read instruction manual before changing connector.
17 AC Selects Switch With 18 switch, selects the line voltage at the high end (Right Position) of the range 120V or 240V or at the low end (Left Position) of the range 100V or 220V.
18 AC Selects Switch Selects the line voltage is in the 100V-120V range
(Left Position) or is in the 220V-2140V range (Right Position).
19 Master/Slave Switch Selects for Master (Internal Control) (Tattoo) or Slave (External Remote Control)
20 Input/Output Connector With 19 Master-Slave switch selection, permits from the Master Unit (Serial or Parallel) output connected to Slave unit (Ser. or Par.) Inputs.

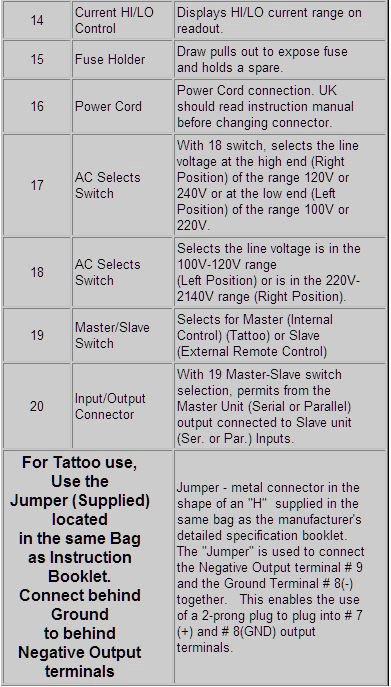

For Tattoo, Use the
Jumper (Supplied)
located in the same Bag
as Instruction Booklet.

Set-Up Instructions
For Combo FS/CC
Jumper - metal connector in the shape of an "H"  supplied in the same bag as the manufacturer's detailed specification booklet.
The "Jumper" is used to connect the Negative Output terminal # 9 and the Ground Terminal # 8(-) together.   This enables the use of a 2-prong Double-Banana plug to plug into # 7(+) and # 8(GND) output terminals.
Notice about international electric compatibilities.
This Electronic equipment rated for 110-120 Volt  and  220-240Volts
You will need to change the plug on the power cord
if your country does not use American standard 3 prong plug.
