>> LEARN then EARN <<
Tune your machine My Way... Wes Wood,
Tattoo machine developer.
Everyone tells you to
"Tune" your machine . . . .
. . . Now You Can. . . (P.S.: Now they can too.)
These illustrations are for the TEST.
Install them inside as normally done.
Place these wires on Either the inside
or the outside.
Cut the Capacitor wires shorter if needed.
Insert the wires,
bend them up so they will not vibrate out.
When you loosen and tighten the rear
standoff, use an Allen Key to
hold THE STANDOFF steady as shown
in this picture below
Cut your old capacitor off with scissors.
Loosen the Screws

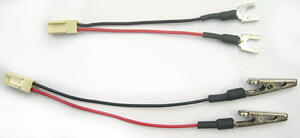

Insert a Forked Lead in-front-of Plastic Washer
directly under the Screw heads.
Can be mounted on either side.
(Do not let the metal leads touch the frame)
Tighten the Screws, insert different capacitors.
Order the Capacitor Test Kit
A Unimax Invention.
Order # CAP-24: Includes 12 Assorted
and 2 Leads $ 24.95
PLUS 2 Standard Allen Keys, Free
Can be left
Insert Capacitor lead wires into
NEW POSI-LOCK ends.
You can do it -
no skills required.
A Dozen different sizes and values of Capacitors.
A learning experience.
---- This is all you have to do.
Clip-On Alligator Clips, Insert a Capacitor
You can do it.
For Quick Test
Alligator Clip Leads can be attached
on the Front Standoff,
and anything on the rear standoff.
EVERY MACHINE IS DIFFERENT
To List of Capacitors
