  Armature Bars

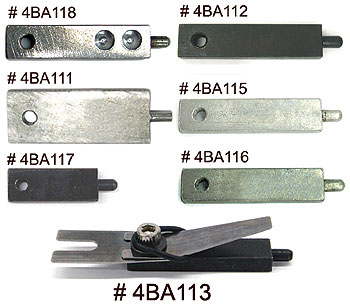

# 4BA-113, Armature Bar Assembly $ 15.00
# 4BA-115, Iron Armature Bar. Natural Finish
# 4BA-112, Black Iron Oxide to prevent rust.
40mm x 10mm x 5mm $ 5.00
$ 10.50
# 4BA-114, $ 10.00
Armature Bar, Long Nose, Steel,
Lucky 7 length   8-32 Thread
$ 5.00
# 4BA-116, $ 20.00
Armature Bar, Rare Soft Iron
Made by Ritchie Montgomery, 8-32 Thread
$ 20.00
# 4BA-117, Mini Single Coil Armature Bar $ 5.00
# 4BA-111, Wide 40mm x 15mm x 3mm $ 5.00
# 4BA-118, Drilled front for reduced weight $ 5.00



  Commonly used Socket Head Cap Screws for Armature Bar and Springs

Screw # 4BF-154
18-8 S/S Socket Head Cap Screw 8-32 Pkg/5
Hex Key Size 9/64" # 4B-316
Used to attach Springs to Armature Bar. 3/16"
Allen Key($0.50) # 4B-316

Screw # 4BF-155
S/S Socket Head Cap Screw 8-32, 1/4"
Pkg/5
Hex Key Size 9/64" # 4B-316
Used to attach back spring to rear binding post.
Allen Key($0.50) # 10343

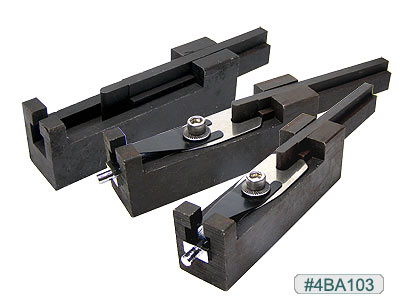

  Alignment Jigs for Armature Bar and Springs

Alloy Steel
Alignment Jig

#4BA103

Align and Assemble
Springs and Armature Bar.

Self-centering.
Adjusts to length.

$30.00/Each

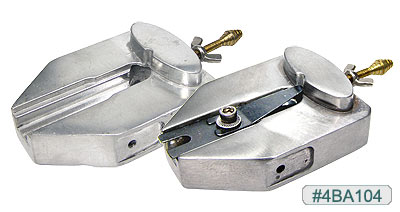

Aluminum
Alignment Jig



Align and Assemble
Springs and Armature Bar.

Order by width of
Rear Spring
#4BA104 fits 14mm wide spring
#4BA106 fits 16mm wide spring

Self-centering.
Adjusts to lengths.

$15.00/Each
